Dakota Digital

Dakota Digital 1967-72 Ford Pickup Analog Gauge System Black Face White Numbers VHX-67F-PU-K-W

Dakota Digital 1967-72 Ford Pickup Analog Gauge System Black Face White Numbers VHX-67F-PU-K-W

Regular price $849.99 USD
Regular price $895.00 USD Sale price $849.99 USD
Sale Sold out
Tax included.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

*Bezel not included, shown for visual/presentation purposes.

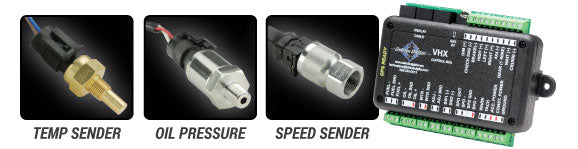

Water Temperature
·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure
·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator
 ·Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings
·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions
5.5" x 3.5"x 1"
Gauge Style:
Analog
Gauge Face Color:
Black
Gauge Number Color:
White
Tachometer Included:
Yes
Speedometer Included:
Yes
Oil Pressure Gauge Included:
Yes
Water Temperature Gauge Included:
Yes
Voltage Gauge Included:
Yes
Fuel Level Gauge Included:
Yes
Clock Included:
Yes
Pointer Color:
White
Illuminated:
Yes
Warning Lights Included:
Yes
Gauge Panel Included:
Yes
Gauge Panel Material:
Aluminum
Gauge Pod Included:
No
Gauge Panel Color:
Black
Quantity:
Sold as a kit.
Notes:
Includes required sensors.
