Dakota Digital 1932 Ford Car Analog Dash Gauge Instrument Cluster VHX-32F-K-W

Dakota Digital 1932 Ford Car Analog Dash Gauge Instrument Cluster VHX-32F-K-W

Regular price $894.99 USD
Regular price $945.00 USD Sale price $894.99 USD
Sale Sold out
Tax included.

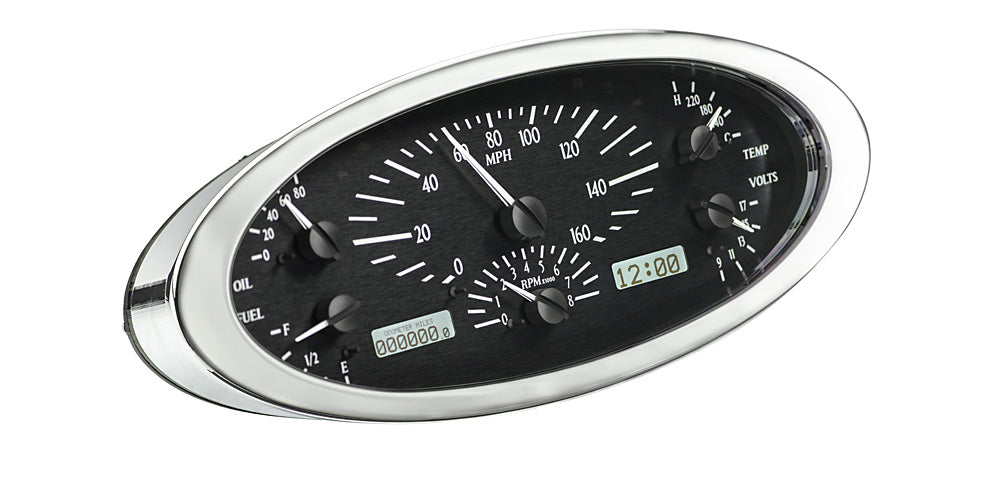

Brilliant chrome plating and superb machining surround state of the art electronics in the VHX-32F direct fit system for 1932 Fords. Packed with features yet contained in the stock dash opening, a fully optioned instrument system can be had without compromising irreplaceable vintage sheet metal.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

Dimensions:
Overall:  12.135" W x 4.925" H
Cutout:   11.685" W x 4.525" H

 *Includes new chrome bezel shown

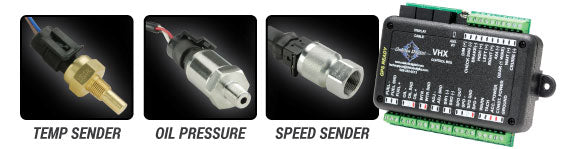

Water Temperature
·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure
·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator
 ·Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings
·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions
5.5" x 3.5"x 1"
