Edelbrock

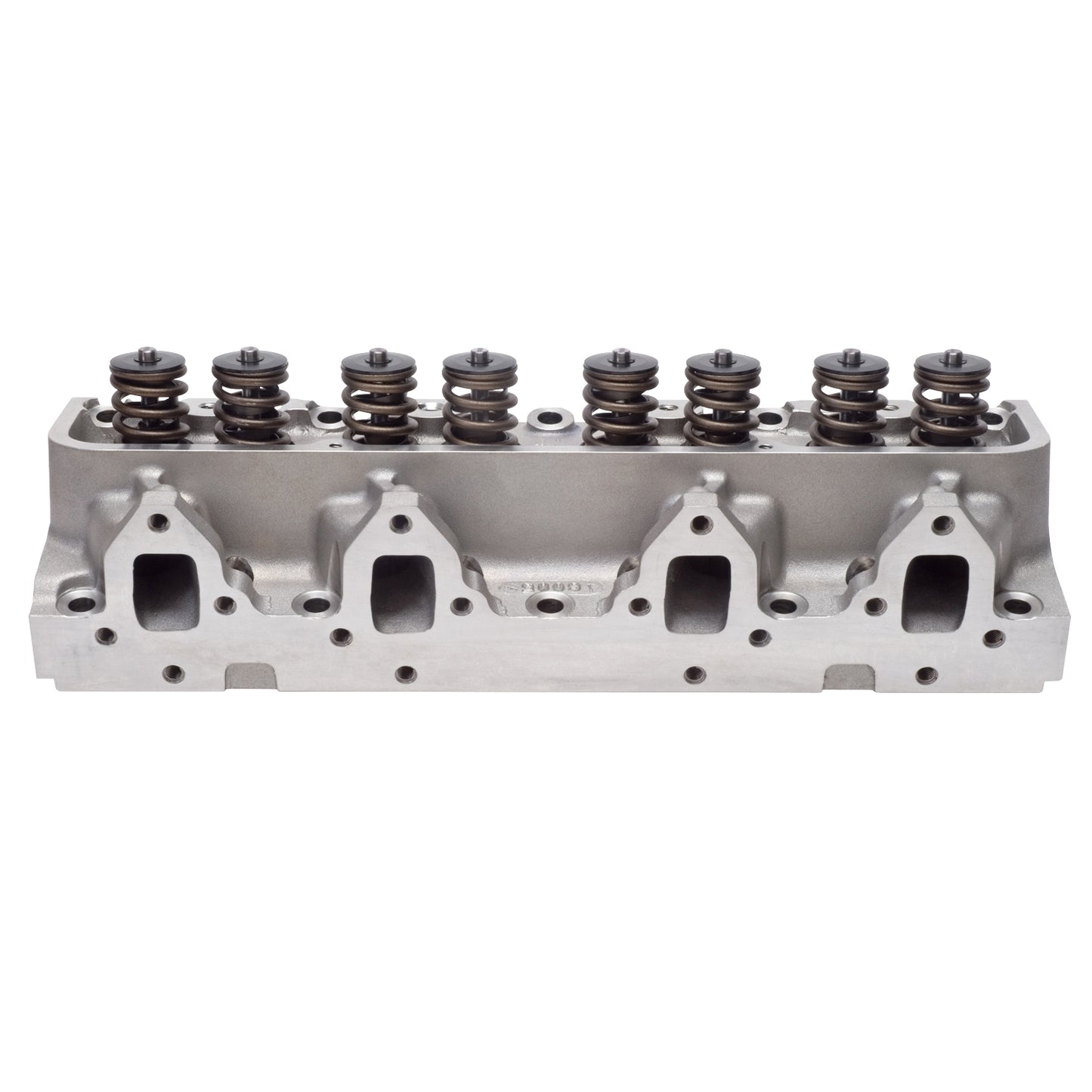

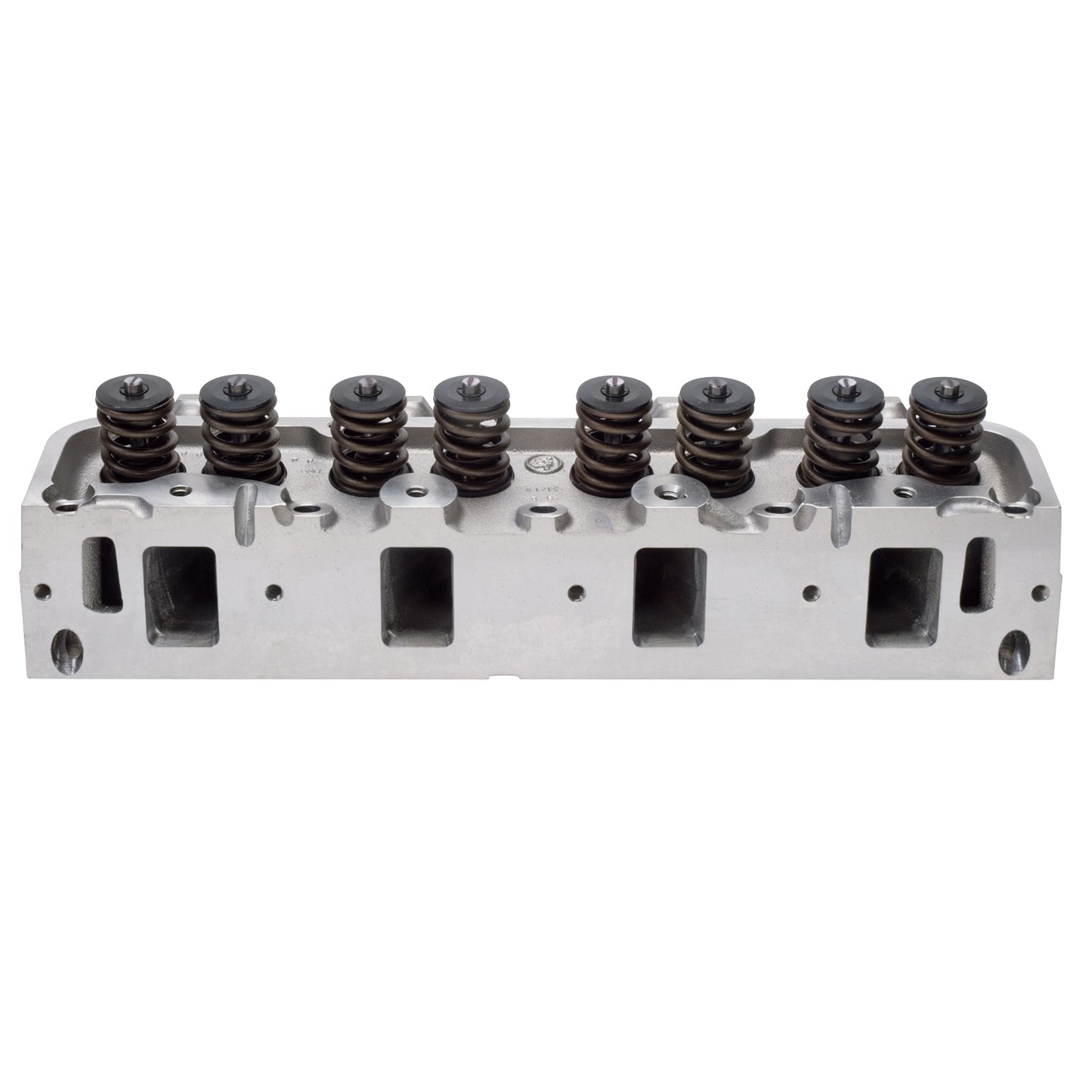

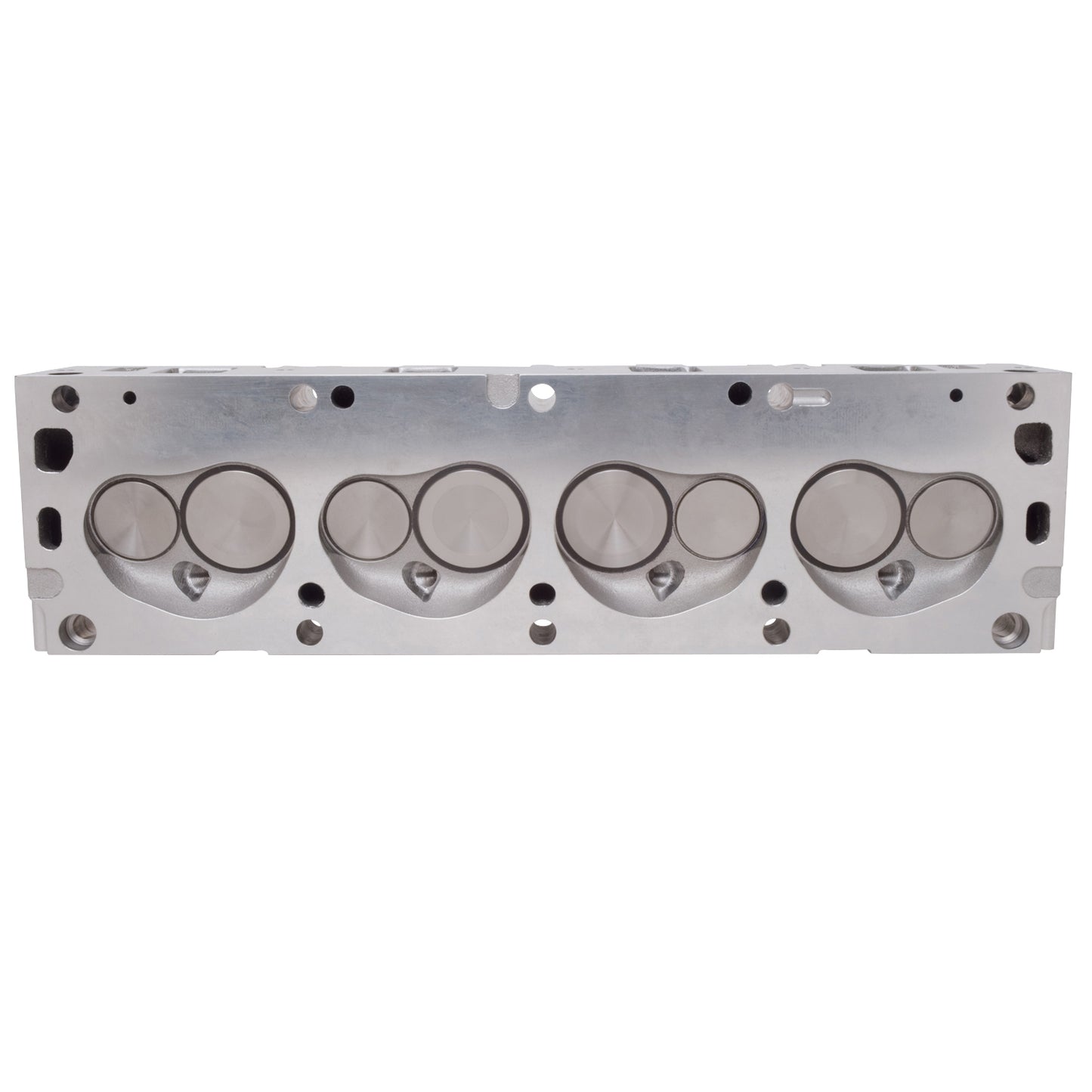

Aluminum Edelbrock Cylinder Head Assembly 60069 Performer RPM 170cc 72cc for Ford 390-428 FE

Aluminum Edelbrock Cylinder Head Assembly 60069 Performer RPM 170cc 72cc for Ford 390-428 FE

$904.50 USD
$936.50 USD $904.50 USD
Sale Sold out
Tax included.

sold individually.

The Edelbrock 60069 Performer RPM Cylinder Heads are designed for use with 1961-76 390-427-428 Ford applications. Performer RPM heads are perfect for street performance, daily drivers and muscle cars where more performance is needed.

  • EQUIPPED WITH SPRINGS FOR USE IN HYDRAULIC FLAT TAPPET CAMSHAFT APPLICATIONS; 428 Cobra Jet-sized valves promote excellent flow for streetable power; Rocker shaft stud kit #6009 provides better rocker shaft retention and is highly recommended for use with Edelbrock FE heads. It eliminates wearing of the threads and the possibility of bottoming the rocker shaft bolts in the head.; Match with Edelbrock head gasket sets.; 390 GT exhaust will not fit.; Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. Deck thickness: 5/8"
Combustion Chamber Volume (cc):
72
Intake Runner Volume (cc):
170cc
Exhaust Runner Volume (cc):
125cc
Cylinder Head Style:
Assembled
Cylinder Head Material:
Aluminum
Intake Port Shape:
Rectangular
Intake Valve Diameter (in.):
2.090 in.
CNC-Machined Combustion Chamber:
No
CNC-Machined Intake Runner:
No
CNC-Machined Exhaust Runner:
No
Combustion Chamber Style:
Kidney
Intake Port Location:
Standard
Exhaust Port Shape:
Square
Exhaust Port Location:
Standard
Intake Valves Included:
Yes
Exhaust Valves Included:
Yes
Exhaust Valve Diameter (in.):
1.660 in
Valve Springs Included:
Yes
Maximum Valve Lift (in.):
0.600 in.
Camshaft Style:
Hydraulic flat tappet
Outside Diameter of Outer Spring (in.):
1.550 in.
Damper Spring Included:
Yes
Number of Springs Per Valve:
Single
Retainers Included:
Yes
Retainer Material:
Steel
Locks Included:
Yes
Lock Style:
7 degree
Valve Stem Seals Included:
Yes
Valve Stem Seal Style:
Positive stop
Rocker Arm Studs Included:
No
Rocker Arms Included:
No
Rocker Arm Nuts Included:
No
Guideplates Included:
No
Accessory Bolt Holes Drilled:
Yes
Intake Valve Angle:
13
Valve Guides Included:
Yes
Valve Guide Material:
Manganese bronze
Valve Seats Machined:
Yes
Valve Seat Machine Style:
3-angle
Valve Seat Material:
Ductile iron
Cylinder Head Color:
Natural
Steam Holes Drilled:
No
Oiling Style:
Through head
Machined for O-Ring:
No
Heat Crossover:
No
Remanufactured:
No
